Inicio /Productos/plataforma de perforación de la correa eslabonada/Portable Plant Hydraulic Rotary Crawler 200m Depth DTH SRX200 Water Well Drilling Rig

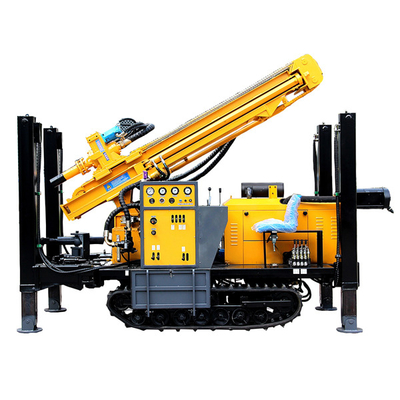

Portable Plant Hydraulic Rotary Crawler 200m Depth DTH SRX200 Water Well Drilling Rig

1.0 set
MOQ
Portable Plant Hydraulic Rotary Crawler 200m Depth DTH SRX200 Water Well Drilling Rig
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Applicable Industries: Manufacturing Plant, Farms, Construction works , Energy & Mining
Showroom Location: Germany, Philippines, Peru, Mexico, Spain, Thailand, Chile, Colombia, South Africa, Uzbekistan
Condition: New
Type: Rotary Drilling Rig
Power Type: Diesel
Usage: Water Well
Voltage: diesel engine
Dimension(L*W*H): 3950*1750*2250mm
Weight: 5000 KG
Warranty: 1 Year
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Pump, Gear, Bearing, Engine, Gearbox
Key Selling Points: Competitive Price
Drilling Diameter: 140-254mm
Drilling Depth: Max.200m
Mobility: Portable (Crawler Type)
Product Name: SRX200 DTH Water Well Drilling Rig
One-time Advance Length: 3.3m
Equipped Diesel Engine: 65Kw (Quanchai)
Air Consumption: 17-31m3/min
Swing Speed: 45-70rpm
Penetration Efficiency: 10-35m/h
Rapid Rise Speed: 30m/min
Rig Lifting Force: 13T
Fast Feeding Speed: 60m/min
Swing Torque: 3400-4700N.m
Información básica
Pago y Envío Términos
Packaging Details: Hydraulic Rotary SRX200 Crawler Portable 200m Depth DTH Water Well Drilling Rig Packed in Full Container Loading Dimension: 3950*1750*2250mm Weight: 5000kg
Supply Ability: 500 Set/Sets per Month
Descripción de producto

Hydraulic Rotary SRX200 Crawler Portable 200m Depth DTH Water Well Drilling Rig

The machine can do both air drilling (with air compressor) and water drilling (with mud pump).
The mutifunctional drill rig of geothemal well is an improved device. Equipped with the good brand diesel engine, the drill rig meets national standards for emissions and environment. Meanwhile, the hydraulic system, supporting configuration and appearance, etc. have been optimized, thus improving the performance and working efficiency. The double rotation motor increased the rotaty torque and revolving speed.
Products Description

Features for Hydraulic Rotary SRX200 Crawler Portable 200m Depth DTH Water Well Drilling Rig :

1. The chassis of the drilling rig adopts a professional walking motor with a reduction box, which has a longer life;
2. The gearbox is cast in one piece, with dual motors providing stronger power, larger torque, more durable, and low maintenance costs;
3. The use of professional excavator chassis, strong and durable, large load-bearing, wide chain plate, little damage to hard roads;
4. Each hydraulic oil pipe is covered with a thick protective jacket to make the service life of the oil pipe longer.
Product Name
Water Well Drilling Rig
Model No.
SRX200
Weight (T)
5
Drill Pipe Diameter (mm)
Φ76, Φ89
Drilling Hole Diameter (mm)
140-254
Drill Pipe Length (m)
1.5m, 2.0m, 3.0m
Drilling Depth (m)
200
Rig Lifting Force (T)
13
One-time Advance Length (m)
3.3
Rapid Rise Speed (m/min)
20
Walking Speed (km/h)
2.5
Fast Feeding Speed (m/min)
40
Climbing Angles (Max.)
30°
Width of Loading (m)
2.4
Equipped Motor Power (kw)
65 (Quanchai Brand)
Hoisting Force of Winch (T)
/
Working Pressure (MPa)
1.7-2.5
Swing Torque (N.m)
3200-4600
Air Consumption (m3/min)
17-31
Dimension (mm)
3950*1630*2250
Swing Speed (rpm)
45-70
Equipped With Hammer
Medium And High Wind Pressure Series
Penetration Efficiency (m/h)
10-35
High Leg Stroke
1.4
Packing & Delivery

Packing & Container Loading for HHydraulic Rotary SRX200 Crawler Portable 200m Depth DTH Water Well Drilling Rig

1.Water well drilling rig is firmly fixed with steel wire ropes to ensure the safety and no damage of the cargo during transportation.
2.Screw Air Compressor is firmly fixed with steel wire ropes to ensure the safety and no damage of the cargo during transportation.
3.Drilling Tools （such as hammer, drill bit, adapter, etc.) are packed in strong wooden case, it can keep cargo safety and no damage.
4. Drill Rods are Packed in pallets, it can keep cargo safety and no damage.
Company Profile

Our Company Information

Zhengzhou Suiry Machinery Co., Ltd is a manufacturer specialized in the research, development and production of DTH drilling rig, Water well drilling rig, DTH hammer, DTH bits, Drilling Pipe and all accessories about above products, good quality products has exported to Russia, Spain, Canada, Chile, Peru, Uruguay, Mexico, Maldives, Zimbabwe, South Africa, Indonesia, Philippines, etc more than 20 countries and regions. Welcome to contact us and getting more details.
If you are in need of water well drill rig, screw air compressor and drilling tools, pls do feel free to contact us, hope we have a chance to cooperate.
Recommend Products

SR180 Water Well Drilling Rig

Drilling Hole Diameter: 140-254mm
Drilling Depth:180m
Diesel Engine: Yuchai, 60kw
Swing Torque: 3200-4600N.m
Weight:5.2T
Dimension: 4000*1630*2250mm

SRX200 Water Well Drilling Rig

Drilling Hole Diameter: 140-254mm
Drilling Depth:200m
Diesel Engine: Quanchai, 65kw
Swing Torque: 3400-4700N.m
Weight:5T
Dimension: 3950*1750*2250mm

SR260 Water Well Drilling Rig

Drilling Hole Diameter: 140-305mm
Drilling Depth:260m
Diesel Engine: Xichai, 70kw
Swing Torque: 4000-5300N.m
Weight:6.5T
Dimension: 4000*1850*2300mm

SR300 Water Well Drilling Rig

Drilling Hole Diameter: 140-325mm
Drilling Depth:300m
Diesel Engine: Yuchai, 85kw
Swing Torque: 5700-7500N.m
Weight:7.2T
Dimension: 4100*2000*2500mm

SR350 Water Well Drilling Rig

Drilling Hole Diameter: 140-325mm
Drilling Depth:350m
Diesel Engine: Yuchai, 92kw
Swing Torque: 6200-8500N.m
Weight:8.6T
Dimension: 6000*2000*2550mm

SR500 Water Well Drilling Rig

Drilling Hole Diameter: 140-350mm
Drilling Depth:500m
Diesel Engine: Yuchai, 118kw
Swing Torque: 7500-10000N.m
Weight:11.5T
Dimension: 6200*2200*2650mm

S60 Stationary Screw Air Compressor

Working Pressure: 18bar
Air Delivery Capacity: 18m3/min
Weight: 3000kg
Diemension: 3200*1670*2000mm

S85D Screw Air Compressor

Working Pressure: 22bar
Air Delivery Capacity: 24m3/min
Weight: 3560kg
Diemension: 3560*1830*2050mm

BW250 Mud Pump

Flow: 250L/min
Working Pressure: 2.5MPa
Weight: 650kg
Dimension: 1560*995*650mm

DTH Hammer

Size: 4-12inch
Hole Range: 136-450mm
Working Pressure: 1.5-3.5MPa

DTH Drill Bit

Size: 4-12inchHole
Range: 136-450mm
Working Pressure: 1.5-3.5MPa

Drill Rod

Diameter: 76mm, 89mm
Length: 1.5m, 2m, 3m
FAQ
Q1: Are you a manufacturer?
A: Yes, we are a professional DTH drill rig and blasting hole drill rig manufacturer.

Q2: What does your company produce?
A: The main products of our company include blasting drilling rig,water well drilling rig, all kinds of air compressors and drilling tools (such as hammer, drill bit, drill pipe, mud pump, etc.)

Q3: How about your delivery time?
A: Normally the delivery time is about 7-15 days. For some special case, we can make it within 2 weeks, it depends on different products.

Q4: What methods of payment do you accept?
A: We accept T/T, L/C.

Q5: Do you offer any deals or discounts?
A: Yes, price depends on different quantity, different quantity will give you different price.

Q6: How to get a detailed quotation?
A: Please confirm water well borehole diameter and depth, with screw air compressor or mud pump, we will recommend most suitable model drill rig according to your need and prepare detailed quotation ASAP.

If you need more details, welcome to send inquiry or contact us directly, hope we have a good chance to cooperate in your project.
